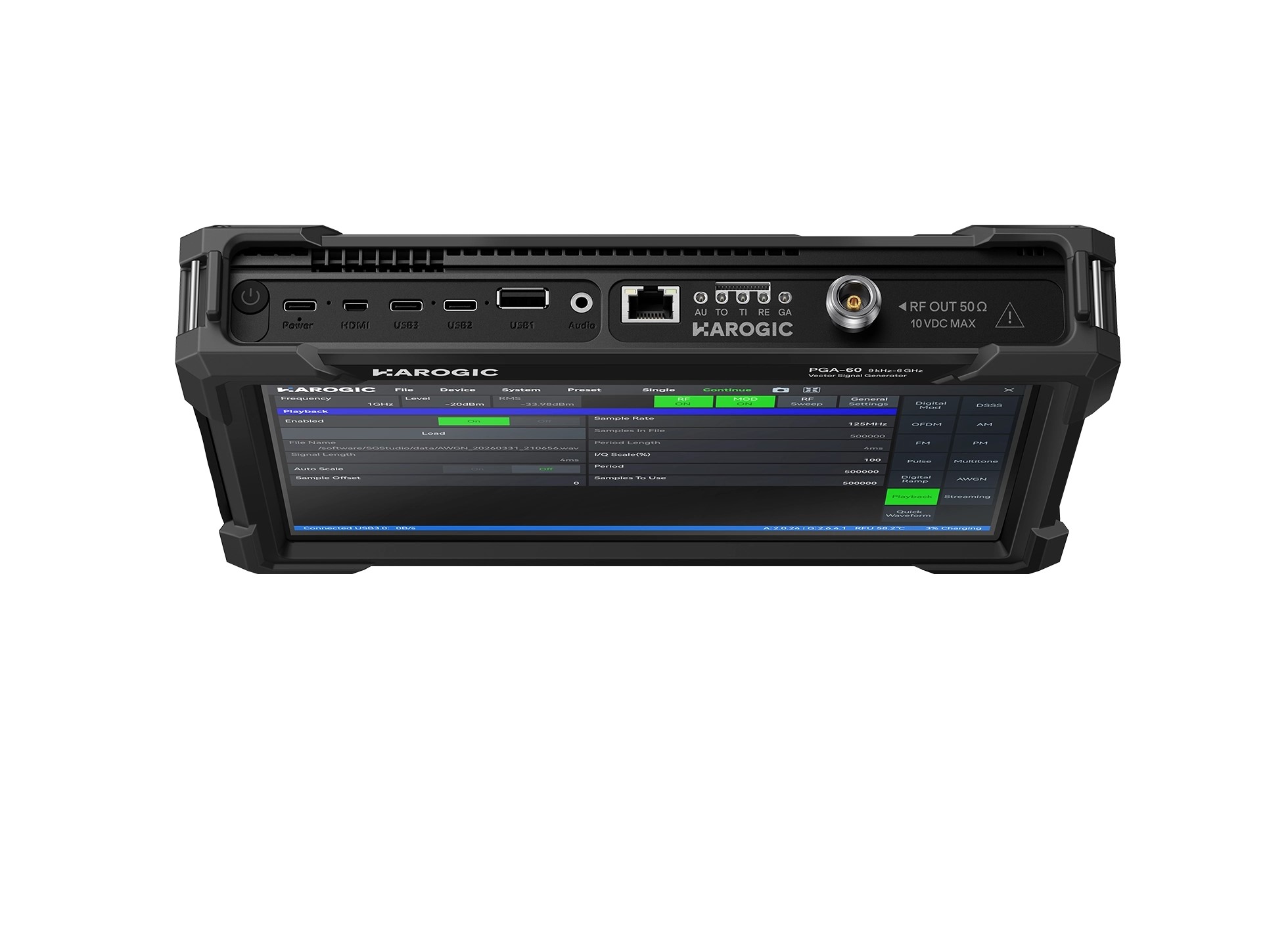

PGA-60 Handheld Vector Signal Generator
Main features:
- Frequency: 9 kHz to 6 GHz
- Modulation Bandwidth: 100 MHz playback, 50 MHz real-time
- Memory depth: 128 MB (32 M samples)
- 1 GHz phase noise: -124 dBc/Hz@10 kHz
- Maximum output power: 7 dBm to 14 dBm, 25 dBm (opt.)
- Minimum output power: ≤-100 dBm across full frequency range
- Harmonics: ≤-50 dBc (0 dBm output, typical)
- 16-bit DAC for high-quality baseband waveform
- FPGA-based high-performance interpolator
- Fine sampling rate adjustment supported
- Fine reference frequency adjustment supported
- Built-in GNSS for timing, positioning, and frequency calibration
- Supports remote control
- Battery life: 2.5 hours; supports power-bank operation

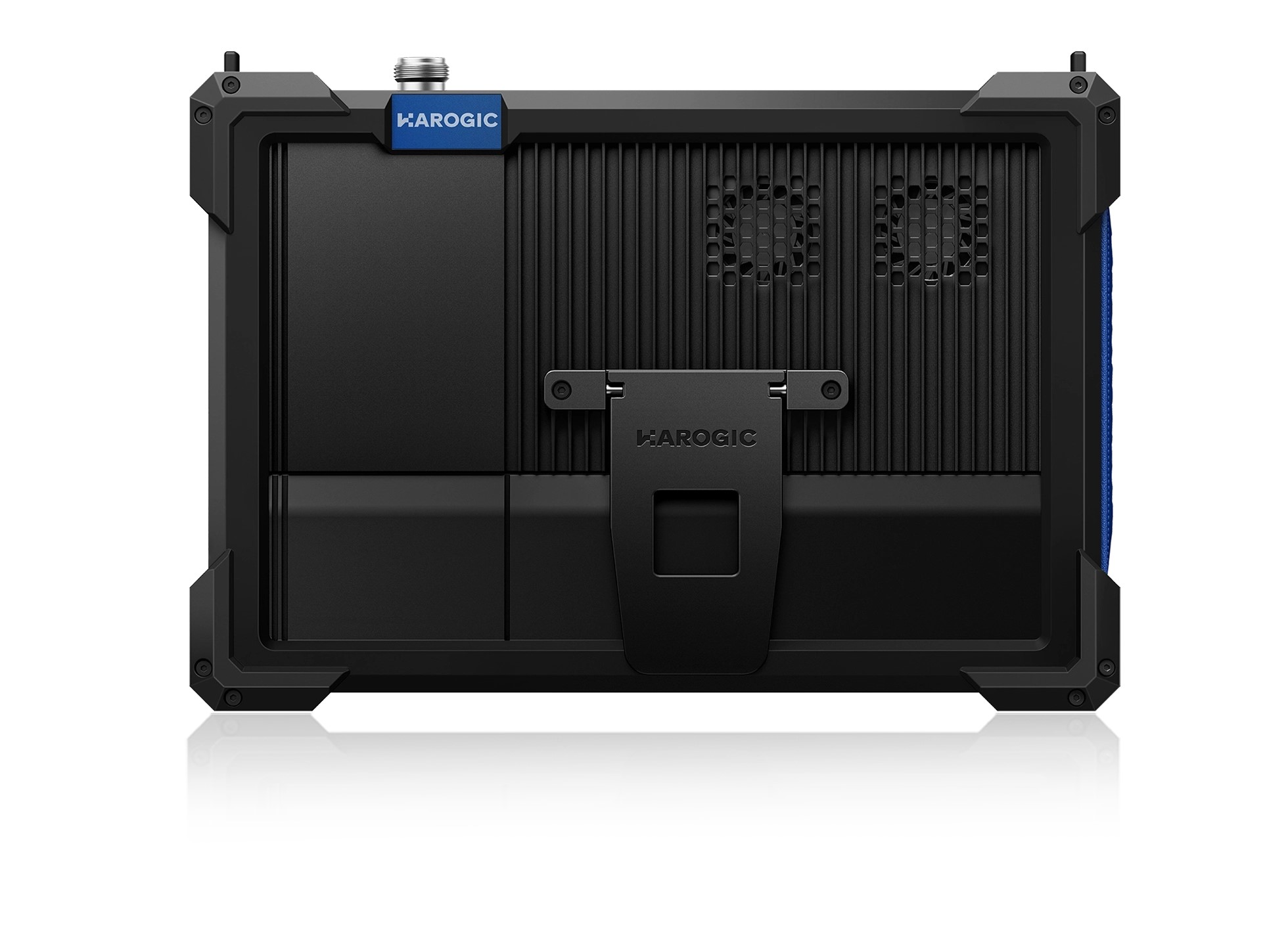

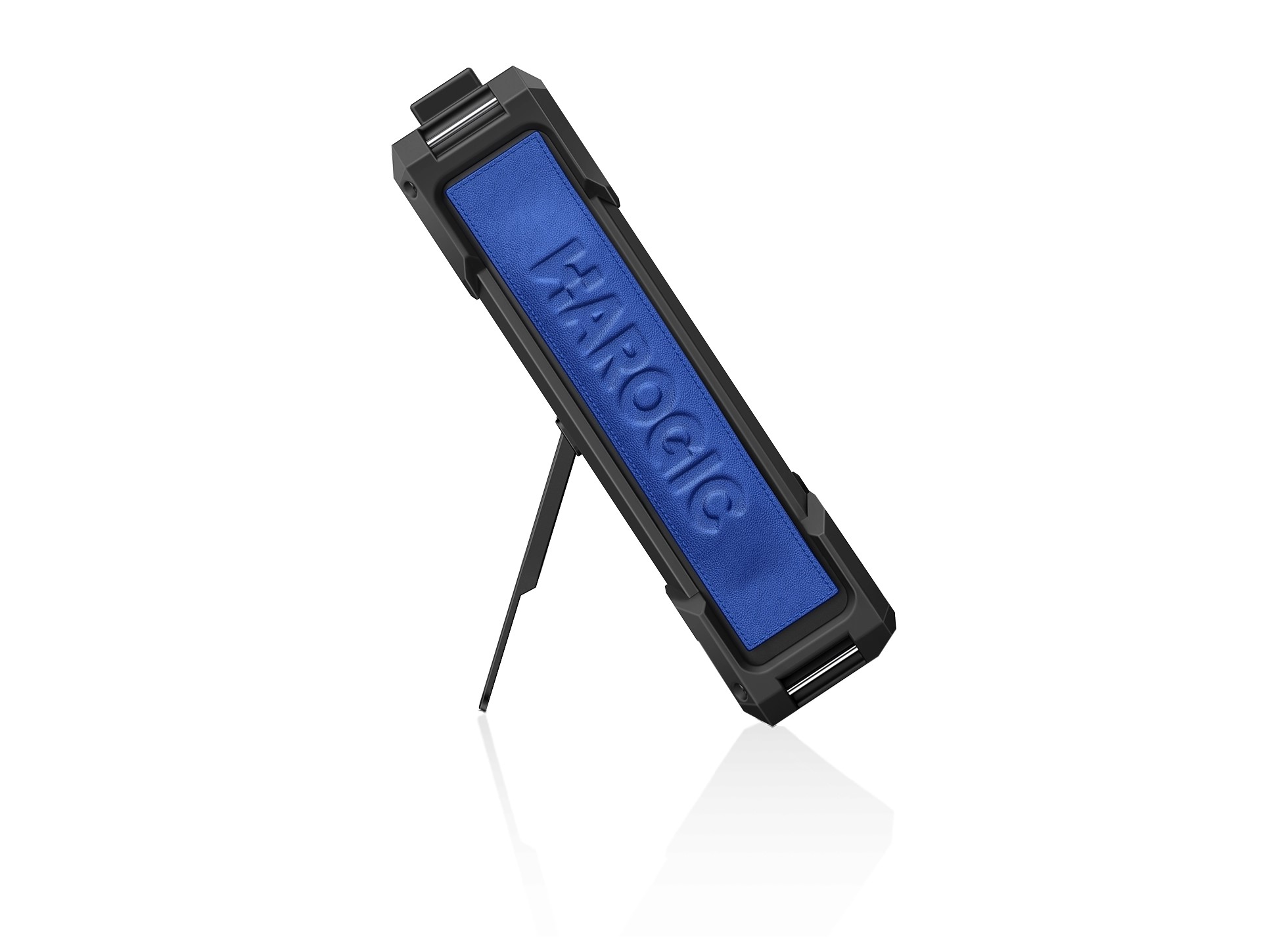

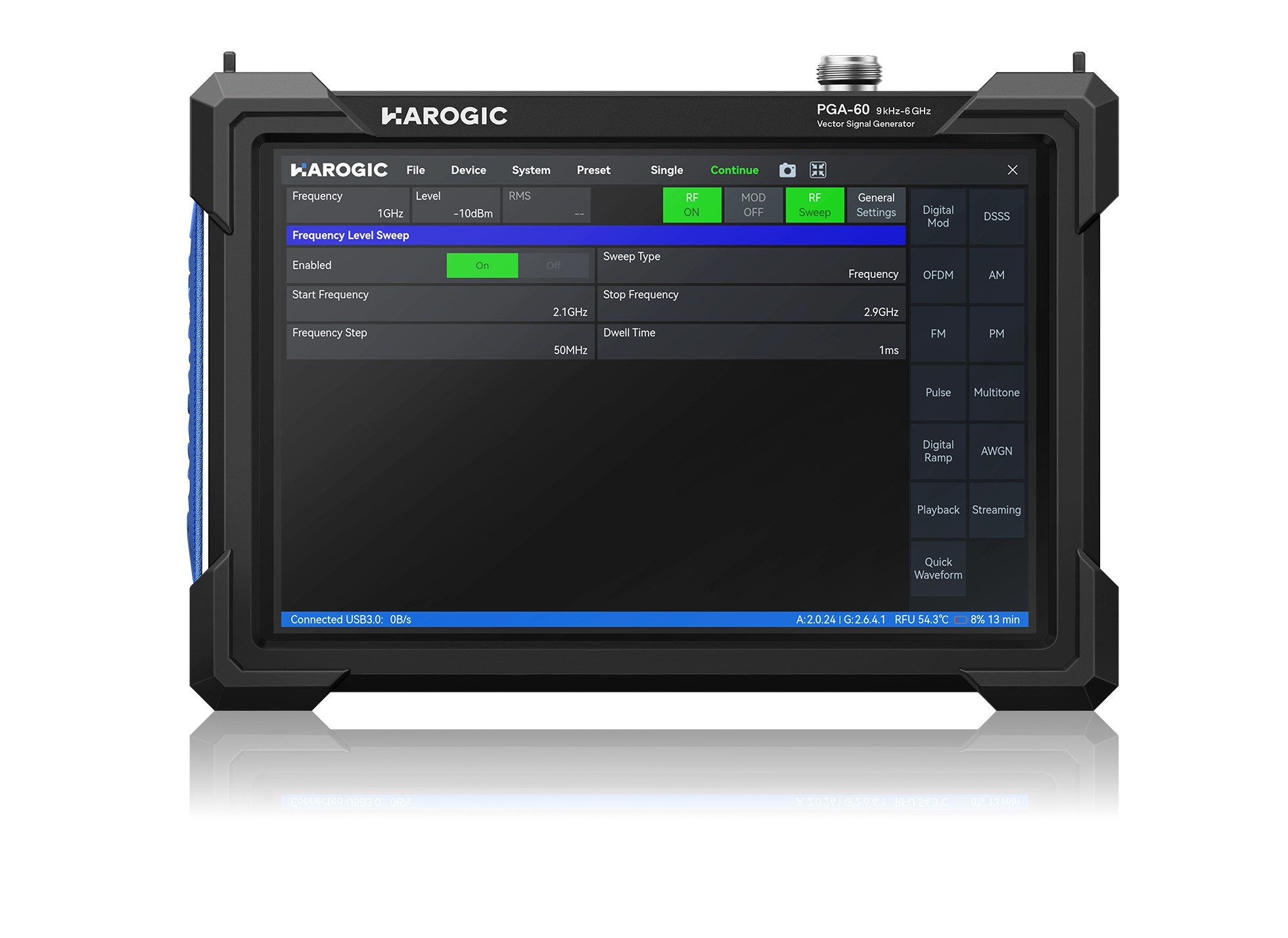

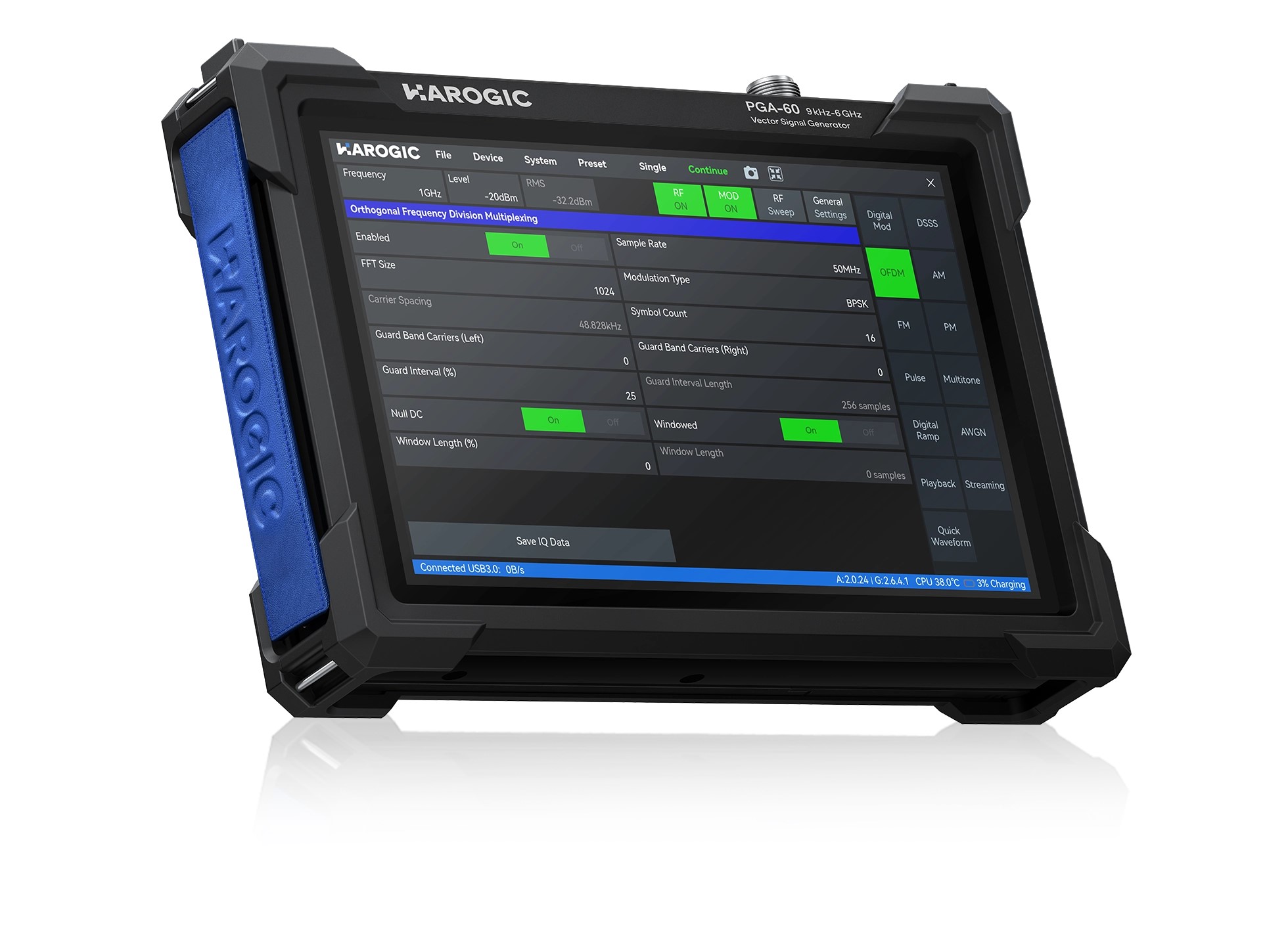

- Portable design: 1.4 kg with a 10.1-inch multitouch display
Price: €
Benefits
Highlight
The PGA-60 is a 1.4 kg handheld vector signal generator with frequency from 9 kHz to 6 GHz. It offers a standard instanous bandwidth of 100 MHz and 50 MHz of real-time streaming bandwidth. Featuring a 2.5-hour battery, it enables engineers to “generate without limits” during wireless maintenance, radar testing, and UAV simulation.
